Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller

Basic Information

Place of Origin:	Shandong, China
Brand Name:	KT
Certification:	iso 9001 ce
Model Number:	KT-20GF

Minimum Order Quantity:	1 set
Price:	$3,000.00/sets 1-4 sets
Packaging Details:	1.plywood case <br>2.wrapped with film and foam <br>3.depending on your requirement
Supply Ability:	300 Set/Sets per Month

Get Best Price Contact Now

Detail Information

Warranty:	1 Years	Rated Voltage:	380/220V,400/230V
Rated Current:	36A	Speed:	1500/1800rmp
Frequency:	50hz/60HZ	Starting Method:	Electrical Strat
Engine:	Ricardo, Weichai, Shangchai, Yuchai,Deutz,changchai,huachai	Certificate:	CE/ISO9001
Protection Class:	IP23	Alternator:	Leroy Somer/Stamford/Faraday
Controller:	Smartgen/ Deep Sea/ Harsen	Warranty Time:	1 Year Or 1000 Hours
Port:	Shanghai Qingdao

Product Description

Silent Japan Denyo 20kw 25kva ac alternator diesel generator for sale

This series of generator sets use weichai four - stroke direct jet engine. This series of engine has been introduced by weichai to European advanced technology, which has the advantages of low fuel consumption, small size and large power, strong starting ability, beautiful appearance and reliable performance, and is a reasonable choice for users who require high quality and low price. The unit is widely used in national defense, telecommunications, field construction, commercial buildings, industrial and mining enterprises, oil fields, highways, ports, rural areas and other places.

Model number	KT-20GF
Output power	50kw/60kva
Power factor (PF)	COSΦ=0.8(lag)
Output voltage(OV)	400V/440V/230V/220V/110V
Output current	36A
Normal frequency	50HZ/60HZ
Rated speed	1500rpm/1800rpm
Diesel oil type	(standard) 0 × light diesel (normal temperature)
Size	20009001200(L×W×H mm)
Weight	800kg
Steady state voltage regulation rate (%)	≤±1
Voltage fluctuation rate(%)	≤±0.5
Transient voltage regulation(%)	+20~-15
Voltage settling time(S)	≤1
Steady-state frequency control	≤±1
Frequency jitter(%)	≤±0.5
Transient frequency fluctuation(%)	+10~-7
Frequency stabilization time(s)	≤3
Fuel consumption(MCR)	200g/kW·h
Noise(LP7M)	75dB(A)

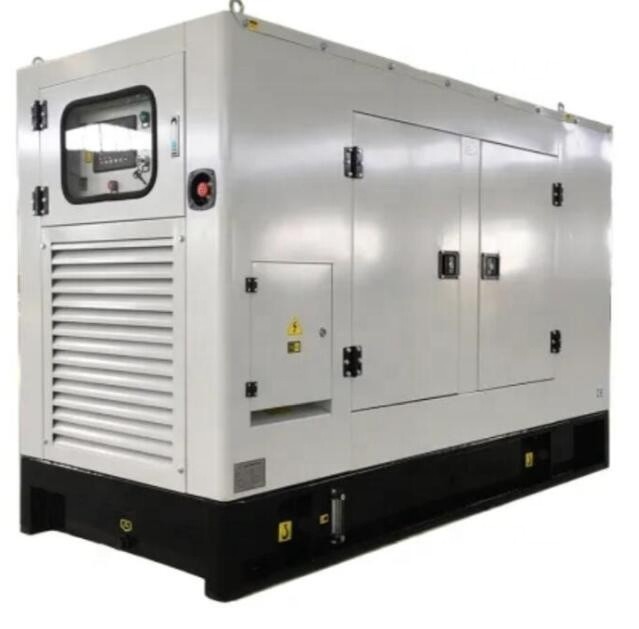

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 0

Product characteristics:
1. The series of diesel generator can be adopt, such as Volvo, Cummins, yuchai, weichai, shangchai, ricardo, YD, and other products

2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

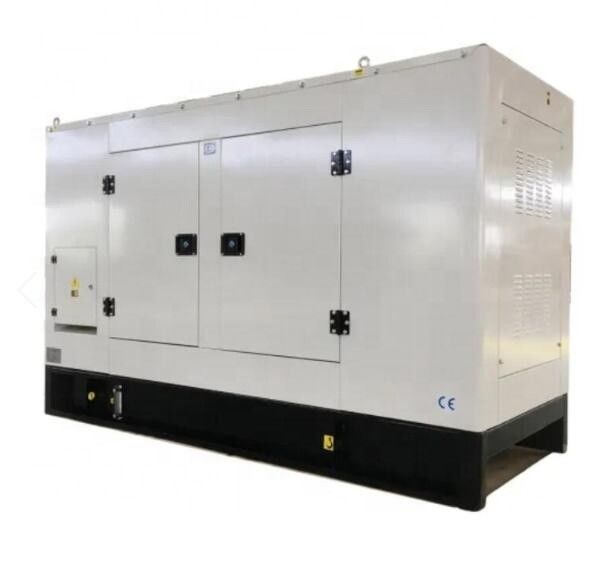

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 1

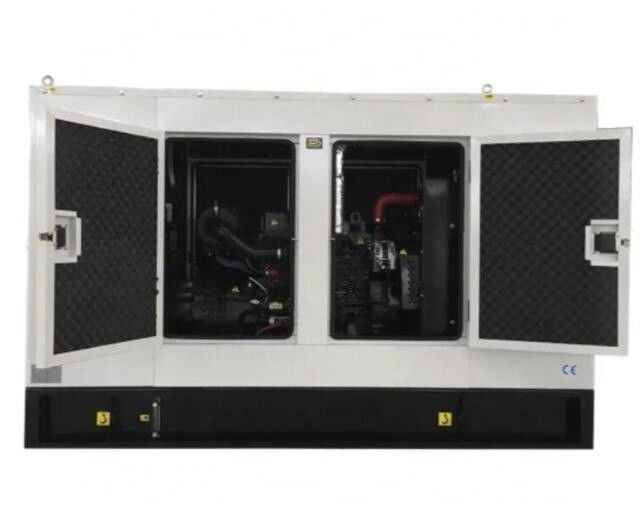

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 2

Packaging & Shipping

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 5

Company Information

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 6

Weifang kangte electromechanical co., LTD., located in weifang, China, which has the title of "city of power", is a new enterprise integrating development, sales and service.The company is committed to the sales and maintenance of famous and excellent construction machinery, 1.5kw-2000kw diesel generator set, small gasoline generator set, water pump set, agricultural machinery, laser cutting machine, laser welding machine, laser marking machine and accessories. Companies adhering to the "integrity, innovation, mutual benefit, win-win" business philosophy.Through the accumulation of my own experience and the unremitting pursuit and improvement of the future, I continue to carry out self-innovation, scientific and technological innovation, management and business philosophy innovation.

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 7

Certifications

Silent Japan Denyo 20kw 25kva AC Alternator Diesel Generator with Smartgen Controller 10

1, What is your power range of your diesel generator?

We can provide 0.75KVA to 3000KVA.

2, What is your warranty?

  We have a professional after-sales team 24 hours service our products motor power warranty for a year for life maintenance

3, What kind of battery you supply?

  We can supply you the Maintenance-free battery

4, Date of delivery for the mass production?

  Within 10-20 days after receive the deposits

5, Payment terms

  We accept TT, L/C at sight
