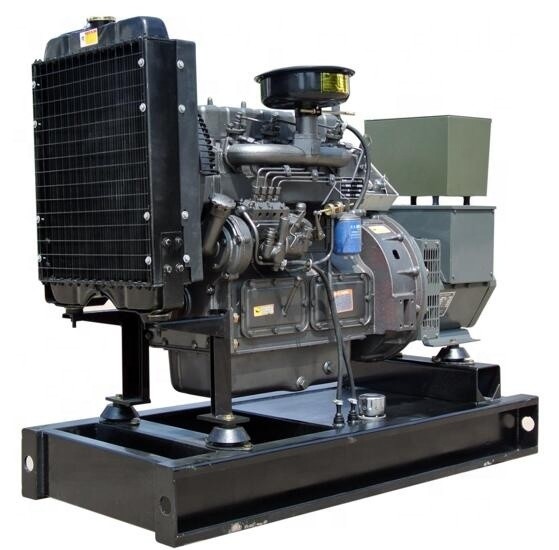

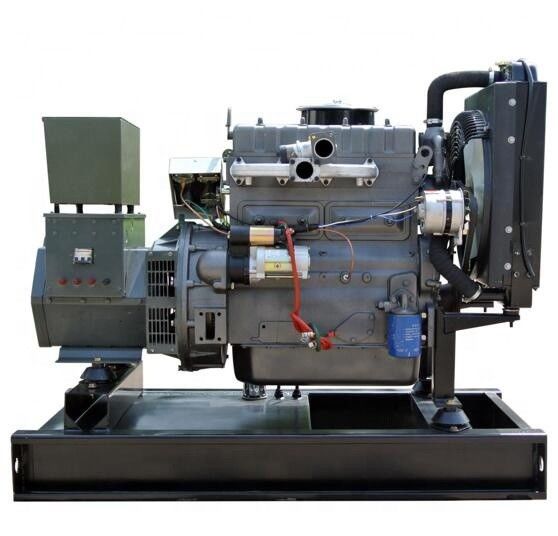

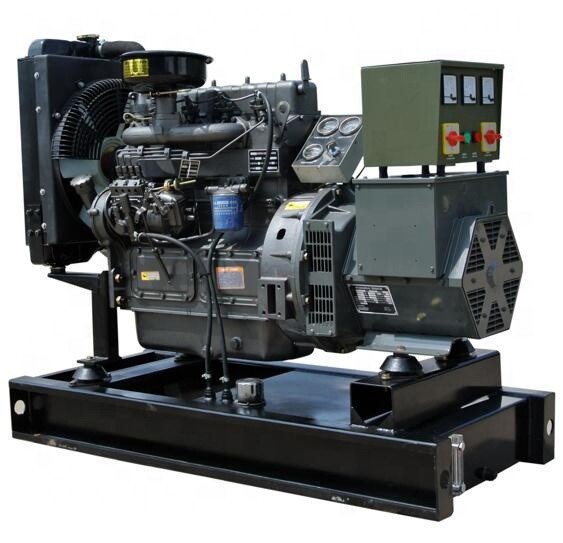

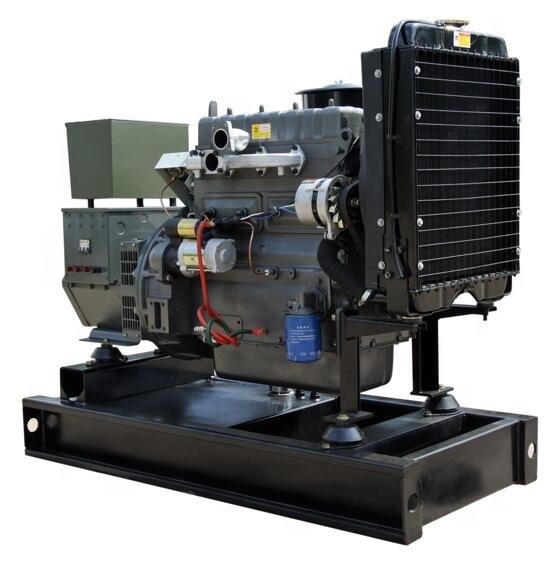

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator

Basic Information

Place of Origin:	Shandong, China
Brand Name:	KT
Certification:	CE/ISO9001
Model Number:	KT-30GF

Minimum Order Quantity:	1 set
Price:	$1,500.00/sets 1-1 sets
Packaging Details:	1.plywood case <br>2.wrapped with film and foam <br>3.depending on your requirement
Supply Ability:	300 Set/Sets per Month

Get Best Price Contact Now

Detail Information

Warranty:	3months-1year	Rated Voltage:	110/220V,400/230V
Rated Current:	54A	Speed:	1500/1800rmp
Frequency:	50hz/60HZ	Weight:	700KG
Starting Method:	Electrical Strat	Engine:	Ricardo, Weichai, Shangchai, Yuchai,Deutz,changchai,huachai
Certificate:	CE/ISO9001	Protection Class:	IP23
Alternator:	Leroy Somer/Stamford/Faraday	Controller:	Smartgen/ Deep Sea/ Harsen
Warranty Time:	1 Year Or 1000 Hours	Port:	Shanghai Qingdao Guangzhou

Product Description

New Diesel generator 30kw 3 phase low rpm ac alternator four cylinder engine 4100 cheap price open type

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 0

Genset Technical Data
Model number	KT-30GF
Output power	30kw/40kva
Power factor (PF)	COSΦ=0.8(lag)
Output voltage(OV)	400V/440V/230V/220V/110V
Output current	54A
Normal frequency	50HZ/60HZ
Rated speed	1500rpm/1800rpm
Diesel oil type	(standard) 0 × light diesel (normal temperature)
Size	16507501200(L×W×H mm)
Weight	700kg
Steady state voltage regulation rate (%)	≤±1
Voltage fluctuation rate(%)	≤±0.5
Transient voltage regulation(%)	+20~-15
Voltage settling time(S)	≤1
Steady-state frequency control	≤±1
Frequency jitter(%)	≤±0.5
Transient frequency fluctuation(%)	+10~-7
Frequency stabilization time(s)	≤3
Fuel consumption(MCR)	200g/kW·h
Noise(LP7M)	75dB(A)
Model number	KT-30GF

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 7
Customization:

Customized Logo

Customized Color

Customized packaging

Product Description

This series of generator sets use weichai four - stroke direct jet engine. This series of engine has been introduced by weichai to European advanced technology, which has the advantages of low fuel consumption, small size and large power, strong starting ability, beautiful appearance and reliable performance, and is a reasonable choice for users who require high quality and low price. The unit is widely used in national defense, telecommunications, field construction, commercial buildings, industrial and mining enterprises, oil fields, highways, ports, rural areas and other places. Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 9

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 12

Product characteristics:
1. The series of diesel generator can be adopt, such as Volvo, Cummins, yuchai, weichai, shangchai, ricardo, YD, and other products

2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 14

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 15

Packaging & Shipping

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 18

Company Information

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 19

Weifang Kangte electromechanical co., LTD., located in Weifang, China, which has the title of "city of power", is a new enterprise integrating development, sales and service.

The company is committed to the sales and maintenance of famous and excellent construction machinery, 1.5kw-2000kw Diesel Generator Set, Gasoline Generator Set, Farm Irrigation Water Pump, agricultural machinery, laser cutting machine, laser welding machine, laser marking machine and accessories. Companies adhering to the "integrity, innovation, mutual benefit, win-win" business philosophy. Through the accumulation of my own experience and the unremitting pursuit and improvement of the future, I continue to carry out self-innovation, scientific and technological innovation, management and business philosophy innovation.

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 20

Certifications

Open Type 30kw Diesel Generator with 4100 Four Cylinder Engine and Low RPM AC Alternator 23

1, What is your power range of your diesel generator?

We can provide 0.75KVA to 3000KVA.

2, What is your warranty?

  We have a professional after-sales team 24 hours service our products motor power warranty for a year for life maintenance

3, What kind of battery you supply?

  We can supply you the Maintenance-free battery

4, Date of delivery for the mass production?

  Within 10-20 days after receive the deposits

5, Payment terms

  We accept TT, L/C at sight
