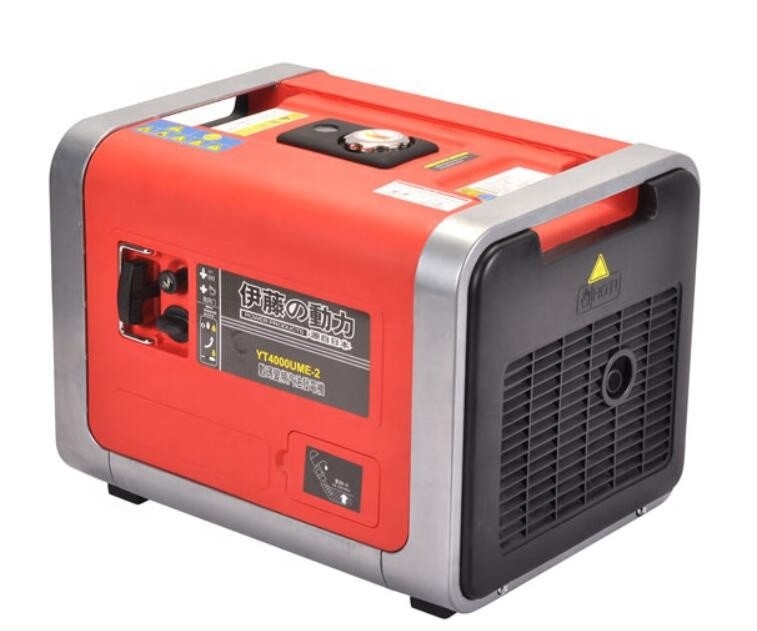

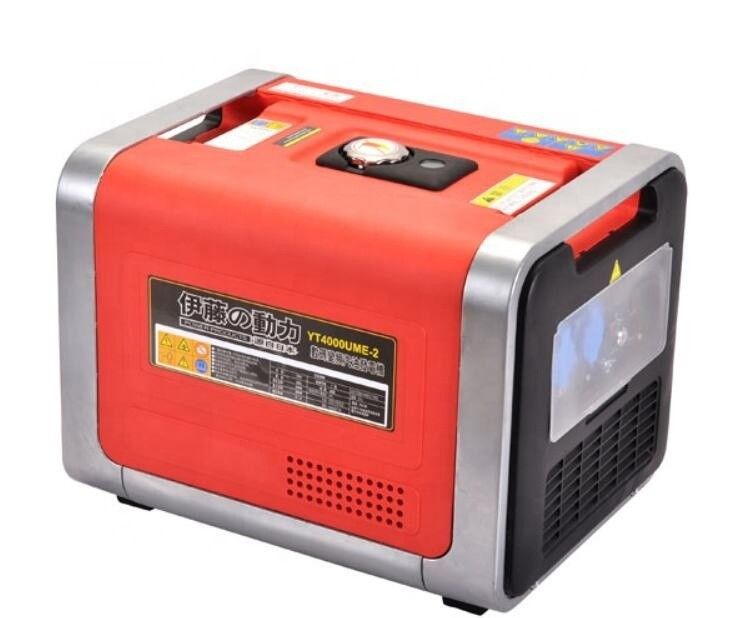

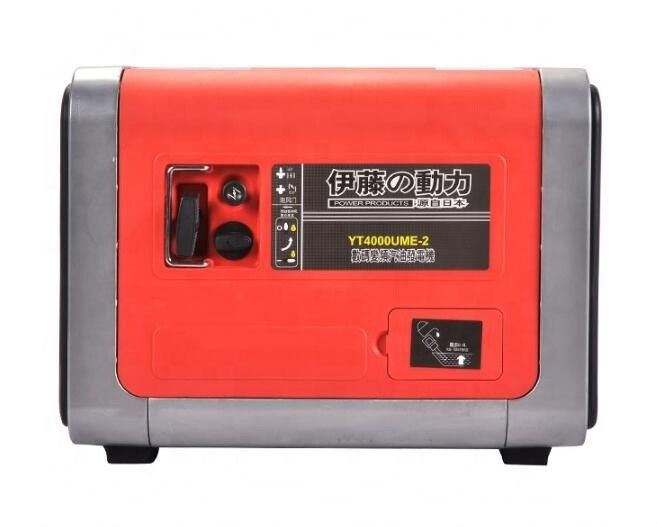

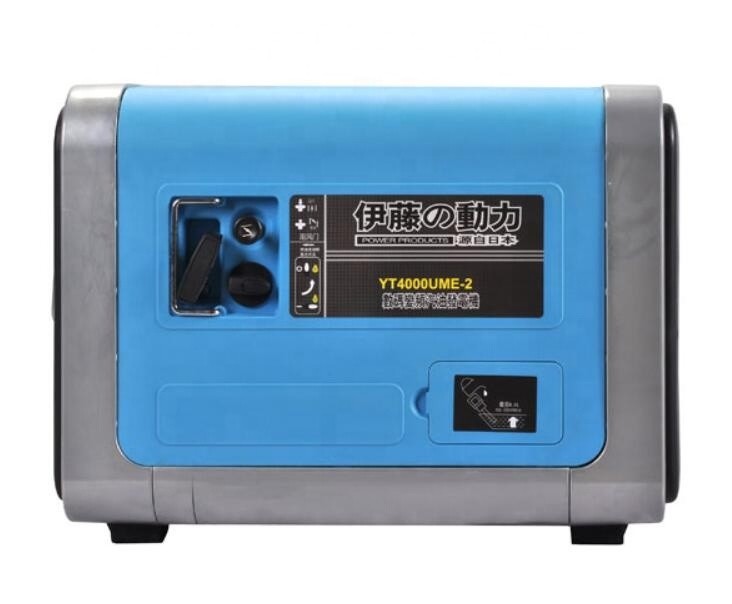

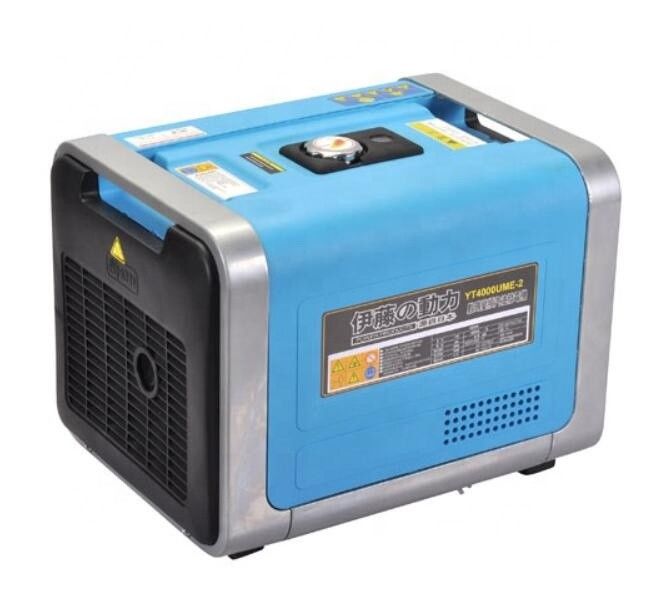

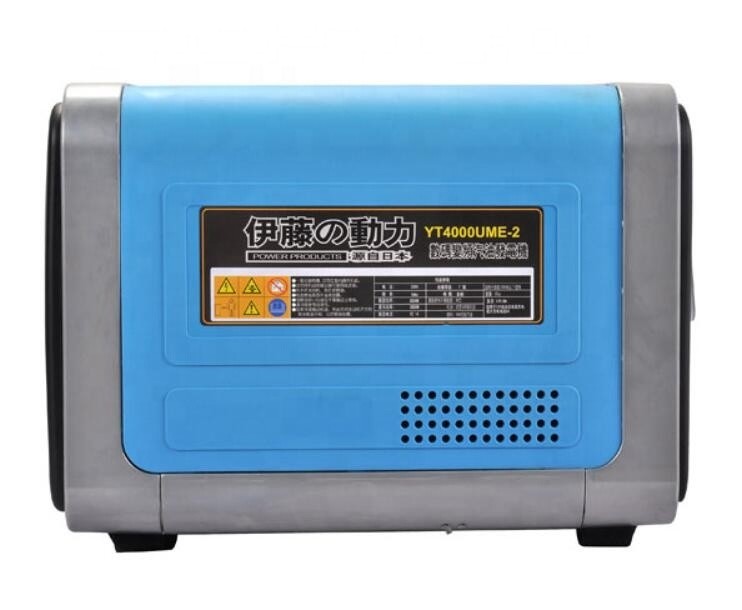

12V-8.3A DC Output YITENG 3 KW Portable Gasoline Silent Digital Inverter Generator

Continuous running time(hr)

6.5 h

Noise level (zero load--full load) dB (A)/7m

68-75

Noise level(ISO 8528)(full load) (ISO 8528)/4m

96dB(A)

Overall dimension/(L×W×H)(mm)

575×430×440

Packing size/ (L×W×H)(mm)

600×455×480

Net weight/(kg)

45

Gross weight(KG)

50

Lube oil type

SAE10W30 (above CC grade)

Engine model

special for digital generator

Engine type

Single cylinder, 4-stroke,air-cooled,OHV gasoline engine

Bore X Stroke

68X50

Displacement(ml)

181

Compression ratio

8.5

Rated power/[kW(Hp)/(r/min)

3.3/3600   4.5HP/3600

Ignition system

T.C.I

Spark plug

F6RTC/WR7DC

Lowest fuel consumption/(g/kW.h)

395

20ft unit

144

40ft unit

304

Desgin Year

2010
