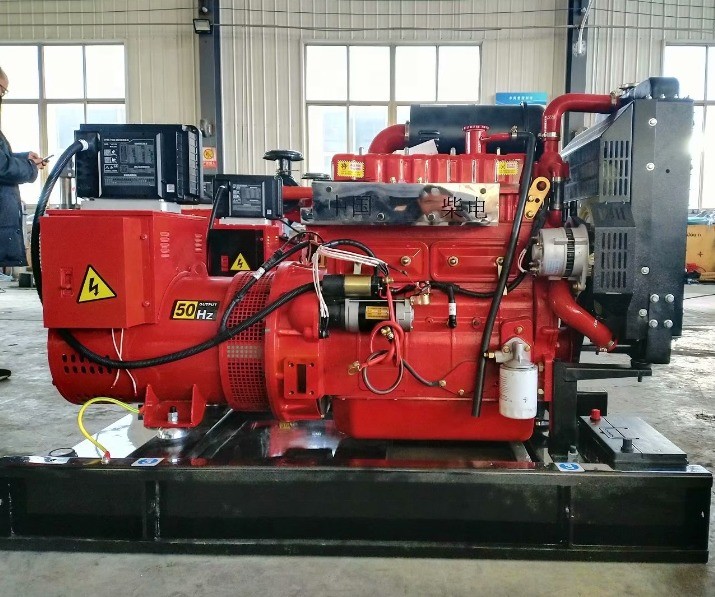

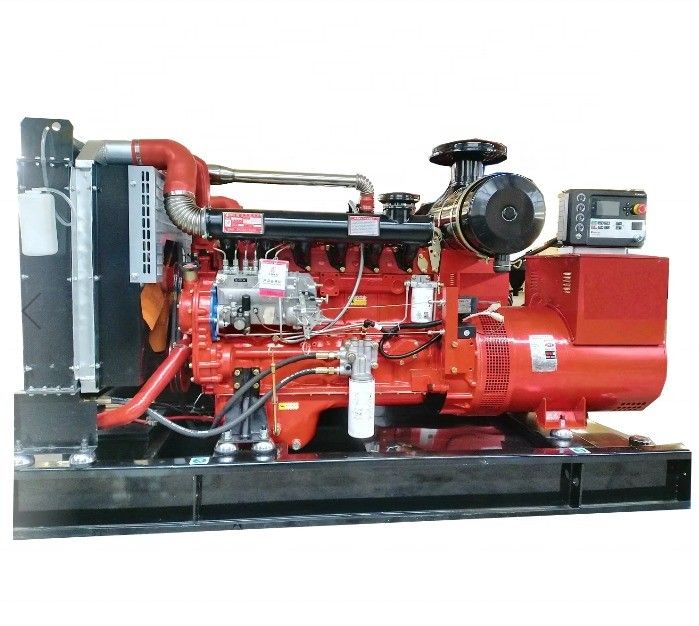

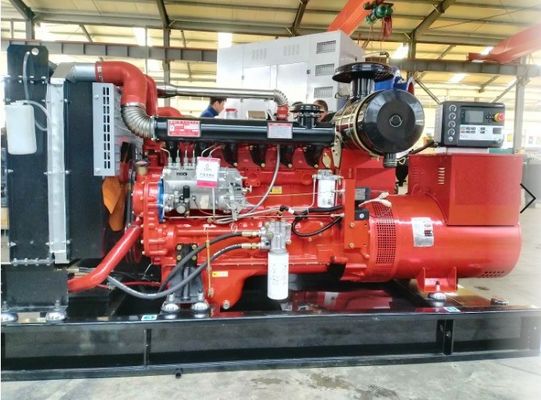

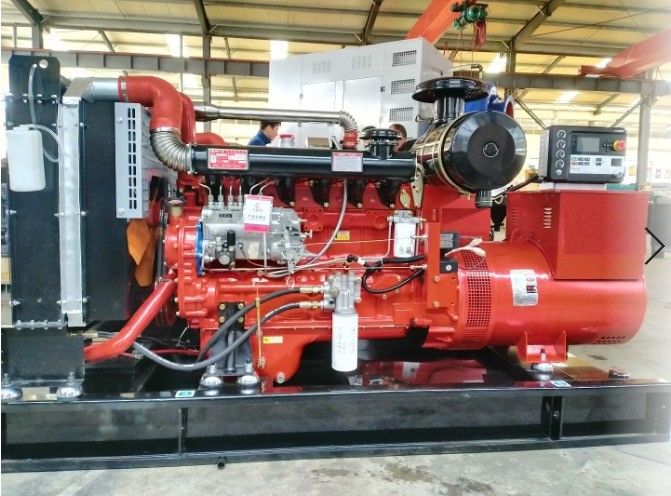

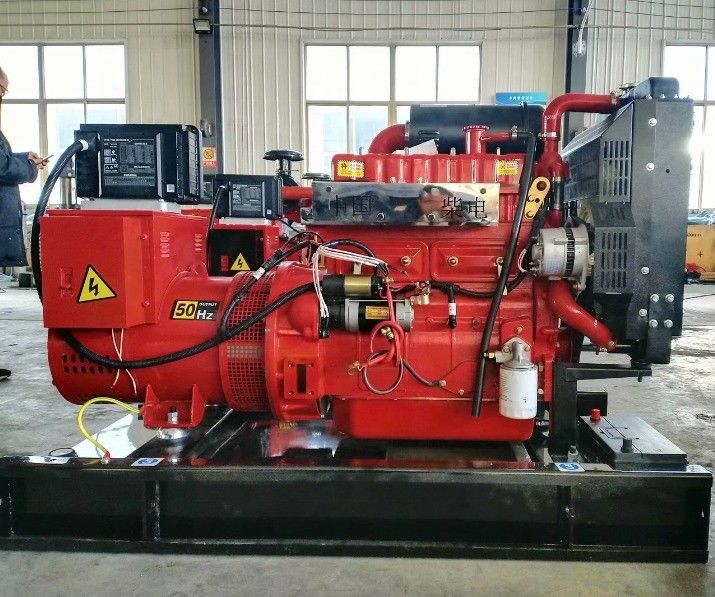

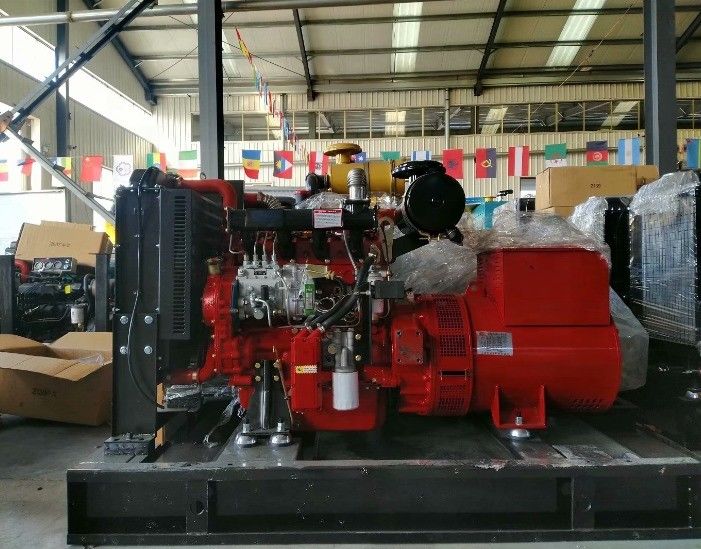

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency

Basic Information
Place of Origin: Shandong, China
Brand Name: KT
Model Number: KT-100GF
Minimum Order Quantity: 1 set
Price: $4,500.00/sets 1-4 sets
Packaging Details: 1.plywood case <br>2.wrapped with film and foam <br>3.depending on your requirement
Supply Ability: 300 Set/Sets per Month
Detail Information
Rated Voltage: 380/220V,400/230V Rated Current: 180A
Speed: 1500/1800rmp Frequency: 50hz/60HZ
Starting Method: Electrical Strat Engine: Ricardo, Weichai, Shangchai, Yuchai,Deutz,changchai,huachai
Certificate: CE/ISO9001 Protection Class: IP23
Alternator: Leroy Somer/Stamford/Faraday Controller: Smartgen/ Deep Sea/ Harsen
Warranty Time: 1 Year Or 1000 Hours Port: Shanghai Qingdao

Product Description

Light Weight Electric Dynamo 100kw Diesel Generator Price





This series of generator sets use weichai four - stroke direct jet engine. This series of engine has been introduced by weichai to European advanced technology, which has the advantages of low fuel consumption, small size and large power, strong starting ability, beautiful appearance and reliable performance, and is a reasonable choice for users who require high quality and low price. The unit is widely used in national defense, telecommunications, field construction, commercial buildings, industrial and mining enterprises, oil fields, highways, ports, rural areas and other places.

Model number
KT-100GF
Output power
100KW/125KVA
Power factor (PF)
COSΦ=0.8(lag)
Output voltage(OV)
400V/440V/230V/220V/110V
Output current
180A
Normal frequency
50HZ/60HZ
Rated speed
1500rpm/1800rpm
Diesel oil type
(standard) 0 × light diesel (normal temperature)
Size
2400*1000*1400(L×W×H mm)
Weight
900kg
Steady state voltage regulation rate (%)
≤±1
Voltage fluctuation rate(%)
≤±0.5
Transient voltage regulation(%)
+20~-15
Voltage settling time(S)
≤1
Steady-state frequency control
≤±1
Frequency jitter(%)
≤±0.5
Transient frequency fluctuation(%)
+10~-7
Frequency stabilization time(s)
≤3
Fuel consumption(MCR)
200g/kW·h
Noise(LP7M)
75dB(A)

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 0Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 1Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 2

 Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 3



Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 4

Product characteristics:
1. The series of diesel generator can be adopt, such as Volvo, Cummins, yuchai, weichai, shangchai, ricardo, YD, and other products

2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 5

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 6Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 7Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 8











Packaging & Shipping

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 9

Company Information

 Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 10

Weifang kangte electromechanical co., LTD., located in weifang, China, which has the title of "city of power", is a new enterprise integrating development, sales and service.The company is committed to the sales and maintenance of famous and excellent construction machinery, 1.5kw-2000kw diesel generator set, small gasoline generator set, water pump set, agricultural machinery, laser cutting machine, laser welding machine, laser marking machine and accessories. Companies adhering to the "integrity, innovation, mutual benefit, win-win" business philosophy.Through the accumulation of my own experience and the unremitting pursuit and improvement of the future, I continue to carry out self-innovation, scientific and technological innovation, management and business philosophy innovation.

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 11Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 12Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 13

Certifications

Weichai 100kw Diesel Generator with Light Weight Electric Dynamo and 50hz/60HZ Frequency 14

FAQ

FAQ:

1, What is your power range of your diesel generator?

We can provide 0.75KVA to 3000KVA.



2, What is your warranty?

  We have a professional after-sales team 24 hours service our products motor power warranty for a year for life maintenance

3, What kind of battery you supply?

    We can supply you the Maintenance-free battery

4, Date of delivery for the  mass production?

    Within 10-20 days after receive the deposits

5, Payment terms

  We accept TT, L/C at sight
